How to Create Powerful Pipelines for React Native in GitLab

GitLab Pipeline

GitLab provides DevOps tools, and GitLab Pipeline is one of them. This tool allows you to "build an automation pipeline for continuous integration" that offers fast feedback on commits, branches, or merge requests. Tasks are declared in a YML file with their necessary dependencies, such as specific Docker images.

Creating the Test Pipeline

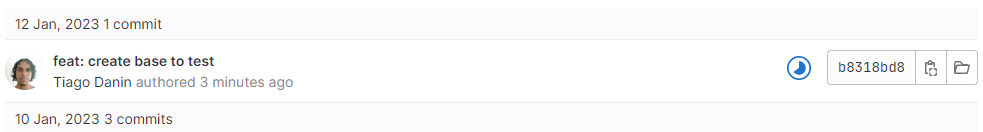

GitLab CI/CD pipeline diagram

You need to have an application with tests already integrated before getting started. The .gitlab-ci.yml file should be created in the root folder. A basic example uses Node.js as a base:

image: node:16.10.0

cache:
  paths:
    - node_modules/

test_async:
  script:
    - npm install
    - node ./specs/start.js ./specs/async.spec.js

To use Yarn as the dependency manager, add the installation instructions through before_script:

image: node:16.10.0

before_script:
  - curl -o- -L https://yarnpkg.com/install.sh | bash
  - export PATH="$HOME/.yarn/bin:$HOME/.config/yarn/global/node_modules/.bin:$PATH"

cache:
  paths:
    - node_modules/

test_async:
  script:
    - yarn install
    - yarn test

Improving the Pipeline

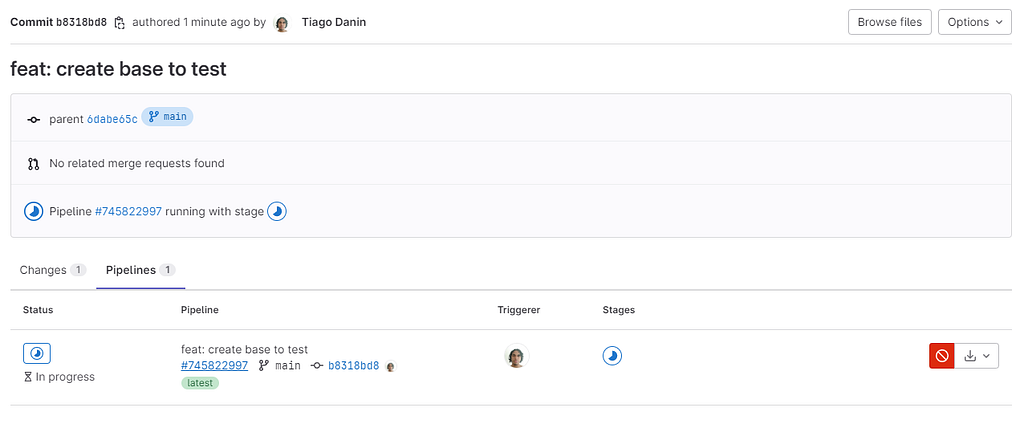

GitLab CI/CD screenshot

Split into Stages

Organize tasks using the stages key:

stages:
  - build-deps
  - test

build-deps:
  stage: build-deps
  script:
    - yarn install

run_tests:
  stage: test
  script:
    - yarn test

Optimize Execution Time

Implement variables for faster caching:

variables:
  FF_USE_FASTZIP: "true"
  ARTIFACT_COMPRESSION_LEVEL: "fast"
  CACHE_COMPRESSION_LEVEL: "fast"

cache:
  - key:
      files:
        - yarn.lock
    paths:
      - node_modules/
    policy: pull-push

Extract Test Coverage

Use Regex to capture coverage:

run_tests:
  stage: test
  coverage: '/All\\sfiles\[\\s\]\*\\|\[\\s\]\*(\\d+\\.\\d+)/'
  script:
    - yarn test:ci

Configure Timezone

In package.json, use cross-env to ensure compatibility:

{
  "scripts": {
    "test": "cross-env TZ=America/Sao_Paulo jest",
    "test:coverage": "cross-env TZ=America/Sao_Paulo jest --coverage --watchAll=false"
  },
  "devDependencies": {
    "cross-env": "^7.0.3"
  }
}

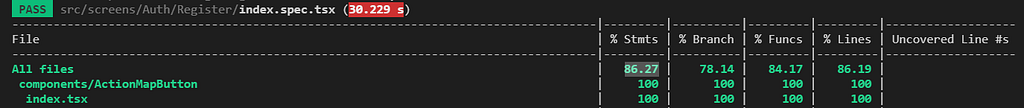

Pipeline configuration

Add JUnit Reports

Install jest-junit:

yarn add jest-junit --dev

Configure in package.json:

{
  "scripts": {
    "test:ci": "cross-env TZ=America/Sao_Paulo jest --coverage --watchAll=false --reporters=default --reporters=jest-junit --silent"
  }
}

And in the pipeline:

run_tests:
  stage: test
  coverage: '/All\\sfiles\[\\s\]\*\\|\[\\s\]\*(\\d+\\.\\d+)/'
  artifacts:
    when: always
    reports:
      junit:
        - junit.xml
  script:
    - yarn test:ci

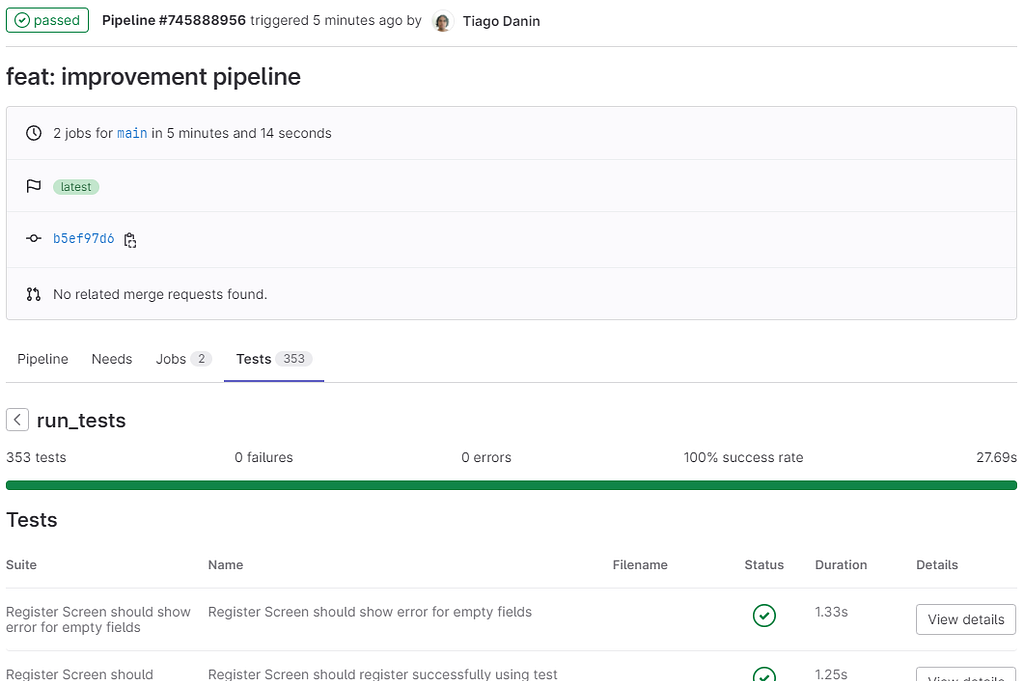

Pipeline stage

Final Complete File

image: node:16.10.0

variables:
  FF_USE_FASTZIP: "true"
  ARTIFACT_COMPRESSION_LEVEL: "fast"
  CACHE_COMPRESSION_LEVEL: "fast"

cache:
  - key:
      files:
        - yarn.lock
    paths:
      - node_modules/
    policy: pull-push
  - key: yarn-$CI_JOB_IMAGE
    paths:
      - .yarn
    policy: pull-push

before_script:
  - curl -o- -L https://yarnpkg.com/install.sh | bash
  - export PATH="$HOME/.yarn/bin:$HOME/.config/yarn/global/node_modules/.bin:$PATH"

stages:
  - build-deps
  - test

build-deps:
  stage: build-deps
  script:
    - yarn install --cache-folder .yarn

run_tests:
  stage: test
  coverage: '/All\\sfiles\[\\s\]\*\\|\[\\s\]\*(\\d+\\.\\d+)/'
  artifacts:
    when: always
    reports:
      junit:
        - junit.xml
  script:
    - yarn test:ci

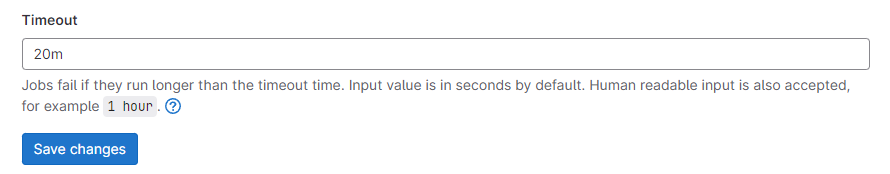

Pipeline result

Setting a Timeout

Configure the expiration time in CI/CD Settings >> General pipelines >> Timeout to avoid unexpected costs. The example uses 20 minutes.

Conclusion

The article demonstrates how to use GitLab Pipeline to test React Native applications with time optimizations and quality assurance before approving merge requests.
